Contentful Webhook Architecture and Strategic Implementation

Webhooks are event-driven HTTP callbacks that enable real-time communication between applications. In Contentful, they act as automated notifications sent to a specified URL (endpoint) when predefined events occur, such as content creation, updates, or deletion.

Unlike traditional APIs, which require polling for updates, webhooks push data immediately upon triggering, reducing latency and resource consumption.

Role in Headless CMS Architecture

Contentful’s headless CMS decouples content creation from presentation, enabling omnichannel delivery. Webhooks bridge this gap by synchronizing content updates across platforms in real time, such as:

• Static Sites: Trigger rebuilds on `Entry.publish` (e.g., Next.js, Hugo).
• Mobile Apps: Push notifications for new content (e.g., breaking news alerts).
• Third-Party Tools: Sync data with CRM systems (e.g., Salesforce) or analytics platforms.

Key Benefits

1. Efficiency: Reduces server load by 40–60% compared to polling, as shown in enterprise deployments.
2. Scalability: Supports bulk actions (e.g., publishing 1,000 products simultaneously) without performance degradation.
3. Automation: Enables CI/CD pipelines (e.g., Vercel deployments) and eliminates manual intervention.

Contentful-Specific Features

• Release Actions: Group and publish content batches (e.g., holiday campaign pages) with dedicated webhooks.
• Environment Aliases: Filter webhooks by environment (e.g., `staging` vs. `production`) to avoid unintended triggers.

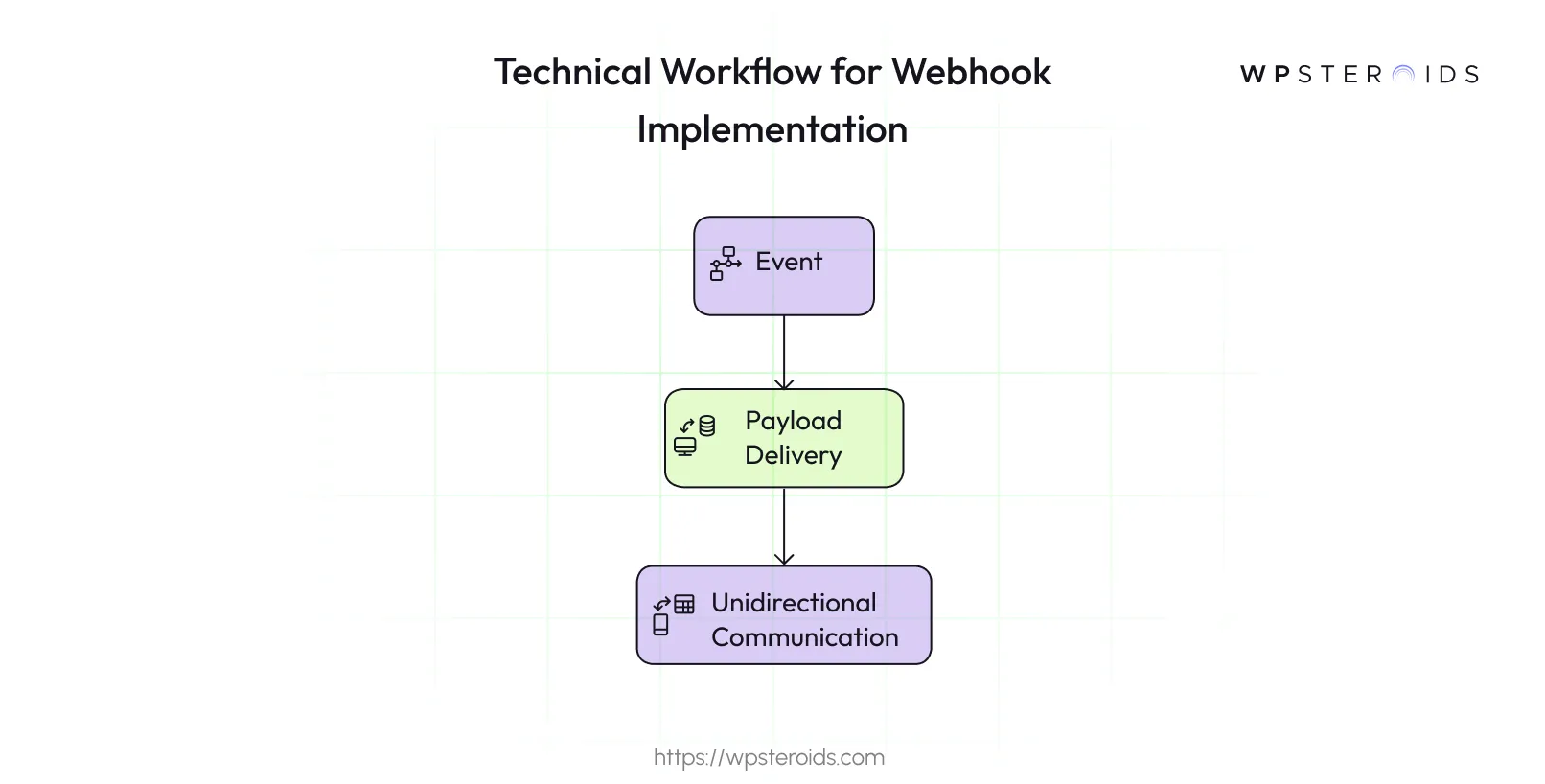

1. Event Trigger: Actions like publishing an entry (`Entry.publish`) or updating an asset (`Asset.save`) initiate the process.
2. Payload Delivery: A JSON payload containing metadata (e.g., `sys.id`, `sys.environment`) is sent to the configured endpoint.
3. Unidirectional Communication: The receiving system processes the payload without sending data back to Contentful, ensuring efficiency.

   For example, when a blog post is published in Contentful, a webhook triggers a static site generator (e.g., Gatsby) to rebuild the site, ensuring the latest content is live within seconds.

Comparison to API Polling

• Webhooks: Eliminate redundant checks by sending data only when changes occur. Ideal for real-time use cases (e.g., inventory updates).
• APIs: Require frequent polling, increasing server load, and latency.

Event-Driven Architecture

1. Triggering Events: Contentful webhooks are activated by specific events tied to content entities. These include:
   1. ContentType: Changes to content models (e.g., `create`, `save`, `publish`).
   2. Entry: Actions on entries like `auto_save` (UI edits every 5 seconds), `publish`, or `delete`.
   3. Asset: Updates to media files, such as `archive` or `unpublish`.
   4. Task: Workflow management (e.g., `create`, `save`).
   5. Release: Batch actions for grouped content (e.g., `execute` for publishing all items in a release).

2. Payload Structure: When an event triggers a webhook, Contentful sends a JSON payload to the configured endpoint. This payload includes:
   1. Entity Metadata: `sys.id` (unique entity ID), `sys.environment.sys.id` (environment identifier).
   2. Event Context: Action type (e.g., `Entry.publish`), timestamp, and user ID.
   3. Example Payload:

{

  "sys": {

    "id": "5KMn9kLJ4E6SgUoQ2aYc",

    "environment": { "sys": { "id": "staging" } }

  },

  "fields": {

    "title": { "en-US": "New Product Launch" }

  },

  "metadata": {

    "action": "publish",

    "user": "user-123"

  }

}

3. Key Differentiators:
   1. `save` vs. `auto_save`:
      1. `save`: Triggered by API updates or explicit user saves.
      2. `auto_save`: Occurs automatically every 5 seconds during UI edits, useful for draft previews but risky for spam.
   2. Release Actions: Execute bulk operations (e.g., publish 50 blog posts at once) with dedicated `execute` events.

Use-Case Differentiation

1. Webhooks are good for time-sensitive workflows:
   1. Rebuilding static sites on content updates.
   2. Sending Slack alerts for task completions.

2. APIs are best for:
   1. Fetching historical data (e.g., archived entries).
   2. Complex queries (e.g., filtering entries by tags across environments).

Synergy in Practice

Combine both for optimized workflows:

1. Use APIs to initialize systems (e.g., populate a cache with existing content).
2. Use webhooks to maintain real-time sync (e.g., update the cache on `Entry.publish`).

Example:

An e-commerce platform uses Contentful’s API to load product data at startup and webhooks to update prices in real time during flash sales, avoiding stale inventory displays.

Step-by-Step Setup

Using the Contentful Dashboard

1. Creating Webhooks:

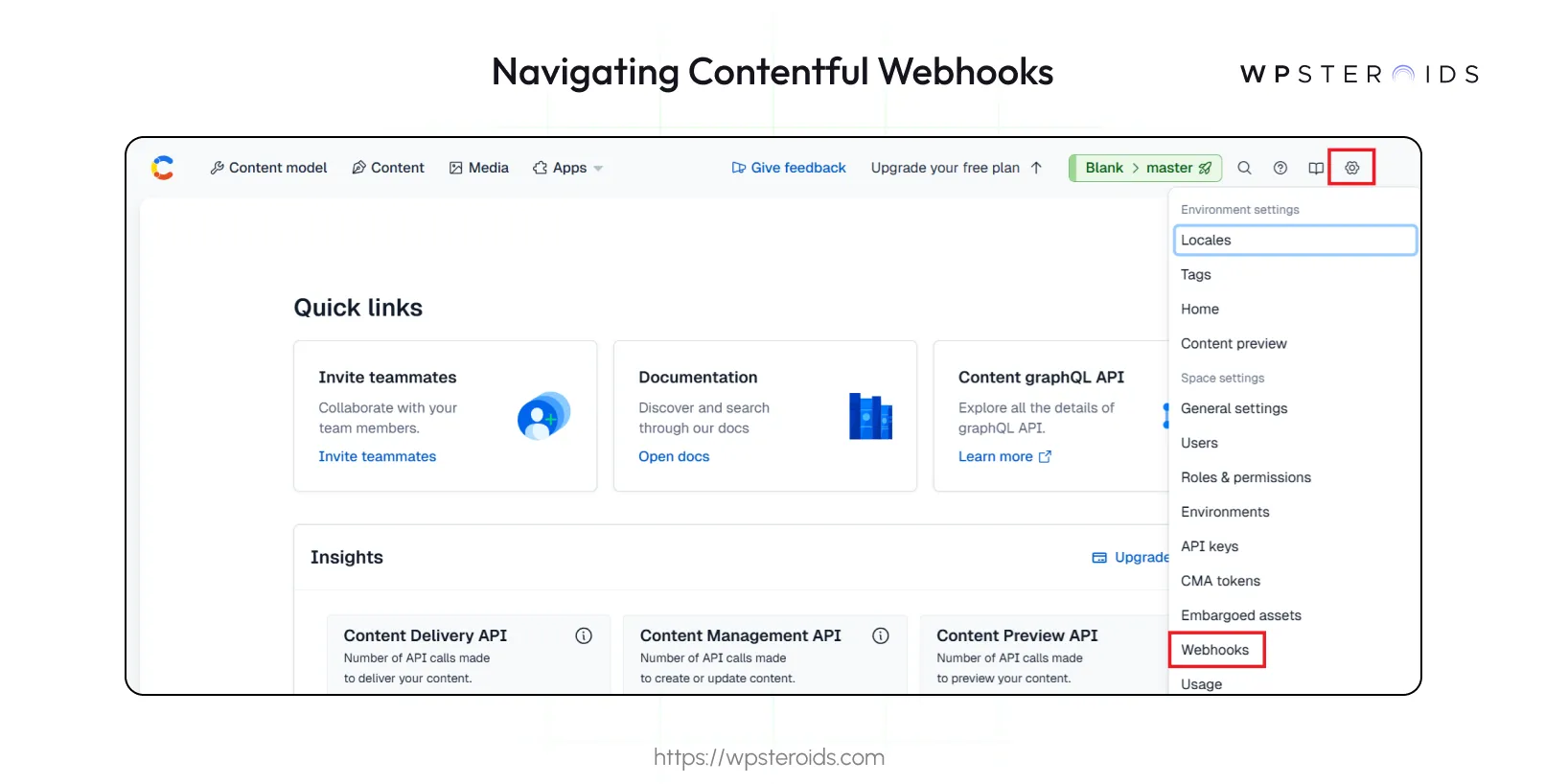

   1. Step 1: Navigate to Settings → Webhooks in the Contentful dashboard.
   2. Step 2: Click + Add Webhook and provide a name and target URL (e.g., `https://api.yoursite.com/webhook`).
   3. Step 3: Select Events:
      1. Choose from predefined triggers like `Entry.publish`, `Asset.archive`, or `Release.execute`.
      2. Use wildcards (e.g., `*.*` for all events) or granular selections (e.g., `ContentType.create`).
   4. Step 4: Add Filters:
      1. Environment ID: Limit triggers to specific environments (e.g., `sys.environment.sys.id = 'staging').
      2. Content Type: Filter by `sys.contentType.sys.id` (e.g., only `blogPost` entries).
      3. Logical Operators: Apply `equals`, `in`, or `regexp` (e.g., `sys.id in ['entry-1', 'entry-2']`).
   5. Step 5: Customize Headers/Payloads:
      1. Add headers (e.g., `Authorization: Bearer <API_KEY>`) for secure endpoints.
      2. Modify the JSON payload to match third-party service requirements (e.g., Slack message formatting).

2. Templates:
   1. Preconfigured CI/CD Integrations:
      1. Use templates for platforms like Vercel, Netlify, or CircleCI to automate static site rebuilds.
      2. Example: Netlify’s template auto-configures headers and payloads for instant deployment triggers.
   2. Third-Party Tools:
      1. Templates for Algolia (search index updates) and Zapier (no-code automation) streamline workflows.

Using the Contentful Management API

1. API Configuration:
   1. Authentication: Use a Content Management API token (e.g., `Bearer CFA...`) for authorization.
      cURL Example:

 curl -X POST "https://api.contentful.com/spaces/{SPACE_ID}/webhook_definitions" \

       -H "Authorization: Bearer <CMA_TOKEN>" \

       -H "Content-Type: application/vnd.contentful.management.v1+json" \

       -d '{

         "name": "Prod-Deploy-Trigger",

         "url": "https://api.vercel.com/deploy",

         "topics": ["Entry.publish", "Asset.publish"],

         "filters": [

           {

             "equals": [

               {"doc": "sys.environment.sys.id"},

               "master"

             ]

           }

         ]

       }

2. Key Parameters:
   1. `topics`: Define triggers (e.g., `Entry.*` for all entry actions).
   2. `filters`: Apply conditions using `doc` paths (e.g., `sys.contentType.sys.id`).

3. Security Best Practices:
   1. Store API tokens in environment variables (never hardcode).
   2. Use HTTPS endpoints to encrypt payloads.

Advanced Filtering

Logical Operators

1. `equals`: Exact matches (e.g., `sys.environment.sys.id = 'master').
2. `in`: Match multiple values (e.g., `sys.id in ['entry-1', 'entry-2']`).
3. `regexp`: Pattern-based filtering (e.g., `sys.id matches 'blog-.*'`).

Multi-Condition Filters

Combine conditions using logical AND to refine triggers:

"filters": [
  {
    "equals": [
      {"doc": "sys.environment.sys.id"},
      "staging"
    ]
  },
  {
    "regexp": [
      {"doc": "sys.contentType.sys.id"},
      {"pattern": "^product"}
    ]
  }
]

This ensures the webhook fires only for `product` content types in the `staging` environment.

Static Site Generation

Implementation:

  # Sample GitHub Actions workflow (Next.js)
  name: Rebuild Site on Contentful Update
  on:
    repository_dispatch:
      types: [contentful-publish]
  jobs:
    build:
      runs-on: ubuntu-latest
      steps:
        - uses: actions/checkout@v4
        - run: npm install && npm run build
        - uses: vercel/action@v28
          with:
            vercel-token: ${{ secrets.VERCEL_TOKEN }}

Configure a Contentful webhook to send a `repository_dispatch` event to GitHub on `Entry.publish`.

CI/CD Pipeline Automation

Triggering Deployments

1. Release Action Webhooks: Execute batch publishes (e.g., `Release.execute`) to trigger Jenkins or GitHub Actions pipelines.

# Jenkinsfile example
pipeline {
  agent any
  properties([
    pipelineTriggers([
      [$class: 'GenericTrigger',
        genericVariables: [
          [key: 'action', value: '$.metadata.action']
        ],
        token: 'contentful-webhook',
        causeString: 'Triggered by Contentful Release Webhook: $action',
        printContributedVariables: true,
        printPostContent: true]
    ])
  ])
  stages {
    stage('Deploy') {
      steps {
        sh 'make deploy-prod'
      }
    }
  }
}

2. Idempotency Keys: Use `X-Contentful-Idempotency-Key` headers to prevent duplicate builds from retried webhooks.

  // Node.js idempotency check
  const idempotencyKeys = new Set();
  app.post('/webhook', (req, res) => {
    const key = req.headers['x-contentful-idempotency-key'];
    if (idempotencyKeys.has(key)) {
      return res.status(200).end(); // Skip duplicate
    }
    idempotencyKeys.add(key);
    // Proceed with deployment
  });

3. Best Practices:
   1. Cache idempotency keys for 24 hours (matching Contentful’s retry window).
   2. Use environment-specific webhooks (e.g., `staging` triggers test suites, `production` triggers live deploys).

Real-Time Notifications

Slack/Email Alerts

Slack Integration: Use a webhook to post messages to a channel on `Task.complete` or `Entry.publish`.

  // Custom payload for Slack
  {
    "text": "New blog post published: {fields.title}",
    "blocks": [
      {
        "type": "section",
        "text": { "type": "mrkdwn", "text": "*{fields.title}* published by {user.email}" }
      }
    ]
  }

Security Measures

1. HTTPS: Mandatory for endpoint URLs to encrypt data in transit.
2. Signature Verification: Validate requests using `X-Contentful-Signature` to prevent spoofing.

  // Node.js signature validation
  const crypto = require('crypto');
  const secret = process.env.WEBHOOK_SECRET;
  const isValid = (req) => {
    const signature = crypto
      .createHmac('sha256', secret)
      .update(req.rawBody)
      .digest('hex');
    return signature === req.headers['x-contentful-signature'];
  };

Security Best Practices

Mitigating Risks:

{
 "IpRanges": [
         { "CidrIp": "3.120.0.0/14", "Description": "Contentful EU" }
       ]
     }

ngrok http 3000 --host-header=rewrite  # Exposes localhost via HTTPS

 Use the ngrok URL as the webhook endpoint and verify signatures during development.

Key Rotation

Steps:

1. Generate a new secret (64-character string via OpenSSL: `openssl rand -hex 32`).
2. Update backend validation to accept both old and new secrets temporarily.
3. Replace the secret in Contentful’s webhook settings.
4. Remove the old secret from the backend after 24 hours.

Monitoring and Error Handling

1. Activity Logs:
   1. Contentful Dashboard: View recent webhook calls, status codes (e.g., 200/500), and response times under Settings → Webhooks → Activity Log
   2. Third-Party Tools:
      Sentry Integration:

    app.post('/webhook', (req, res) => {
      try {
        processWebhook(req.body);
        res.status(200).end();
      } catch (error) {
        Sentry.captureException(error);
        res.status(500).end();
      }
    });

2. Retry Policies:
   1. Contentful’s Default: 3 retries over 1 minute for 429 (rate limits) or 5xx errors.
   2. Custom Retry Logic: Use queues (e.g., RabbitMQ) with exponential backoff:

 # Celery task with retry
  @app.task(bind=True, max_retries=3)
  def process_webhook(self, payload):
      try:
          # Business logic
      except Exception as exc: except requests.RequestException as exc:

          self.retry(countdown=2 ** self.request.retries, exc=exc)

3. Timeouts:
   1. 30-Second Limit: Contentful terminates unresponsive requests after 30 seconds. Offload processing to background jobs:

  // Node.js example with BullMQ
  queue.add('webhook-job', { data: payload }, { timeout: 30000 });

Optimizing Event Selection

1. Avoiding `auto_save` Spam:
   1. `auto_save`: Fires every 5 seconds during UI edits. Use only for draft preview systems.
   2. `save`: Triggered by explicit API calls or manual saves. Ideal for production workflows (e.g., CI/CD triggers).

2. Decision Framework:

Scheduled and Bulk Actions

Use Cases:

• Daily Product Updates: Use scheduled actions to publish/unpublish sale items at specific times (e.g., midnight PST).
• Timed Content Releases: Automate blog post launches or campaign rollouts (e.g., `scheduledAction.execute`).

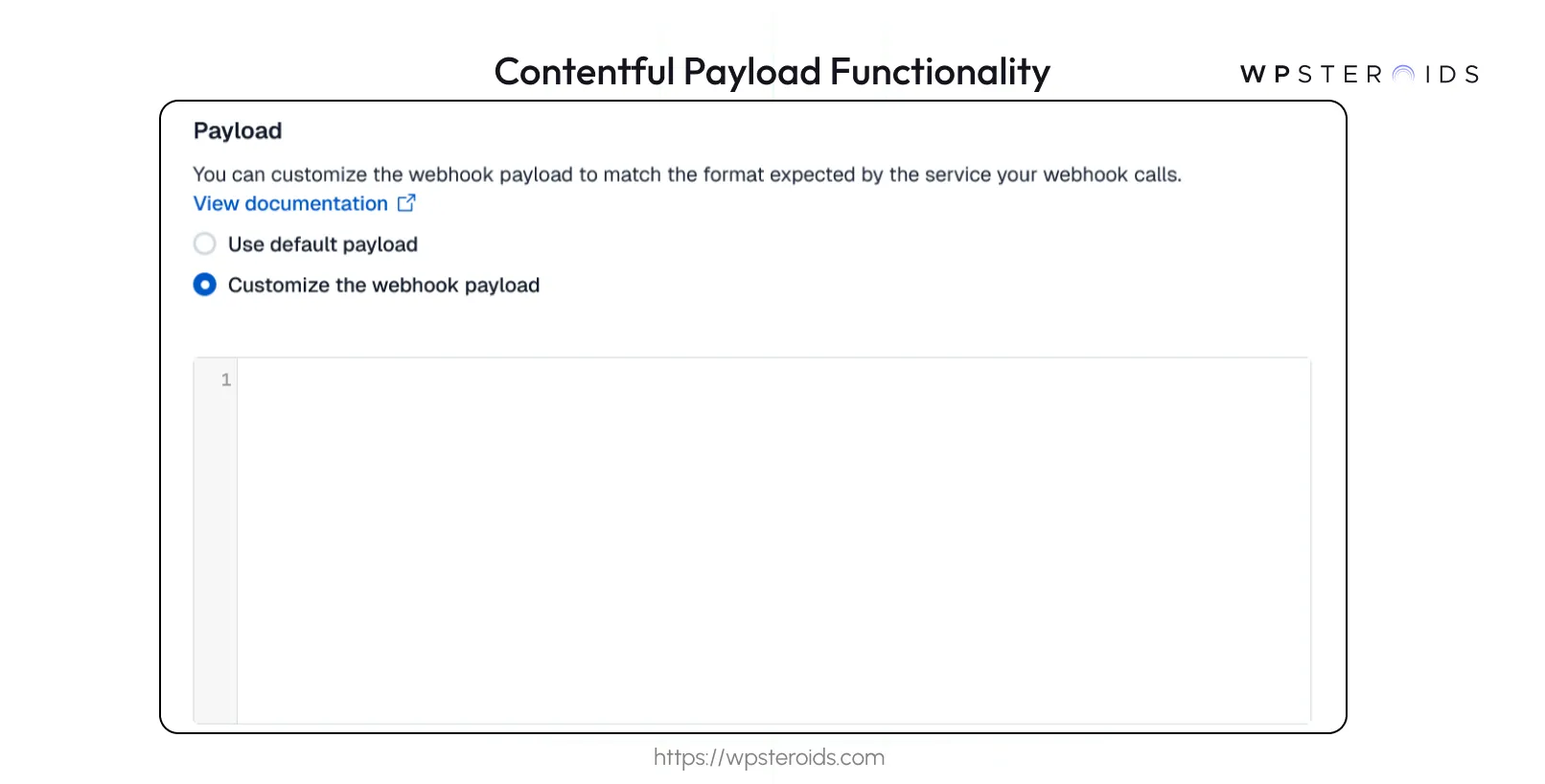

Payload Customization in Contentful Webhooks

Transform raw Contentful payloads to match third-party service requirements. For example, reformat data for AWS Lambda:

// Original Contentful payload

{

  "sys": { "id": "entry-123" },

  "fields": { "title": "New Feature" }

}

// Transformed for Slack

{

  "text": "New entry published: New Feature",

  "attachments": [{ "title": "View in CMS", "url": "https://app.contentful.com/entries/entry-123" }]

}

Environment Alias Support

Filtering by Alias:

• Alias Definition: A pointer to a specific environment (e.g., `production` → `env-master-2025).
• Webhook Configuration:

"filters": [

  {

    "equals": [

      { "doc": "sys.environment.sys.id" },

      "production" // Alias name, not environment ID

    ]

  }

]

Local Testing and Debugging

Tools:

1. Webhook.site:
   • Inspect payloads in real time (headers, body, status codes).
   • Simulate retries or errors for testing.

2. ngrok:

ngrok http 3000 --subdomain=yourdomain # Securely expose localhost

3. Use the ngrok URL (e.g., `https://yourdomain.ngrok.io/webhook`) as the webhook endpoint.

   Debugging Checklist:
   • Verify `X-Contentful-Topic` headers match expected events.
   • Check for signature mismatches (`X-Contentful-Signature`).
   • Monitor ngrok logs for timeout errors.

Webhook Maturity Model

Comparing Webhooks with GraphQL Subscriptions

Contentful webhooks enable real-time, event-driven architectures by automating workflows like static site rebuilds, CI/CD deployments, and cross-platform notifications.

Advanced configurations, such as environment aliases, payload transformations, and scheduled actions, ensure scalability and precision.
